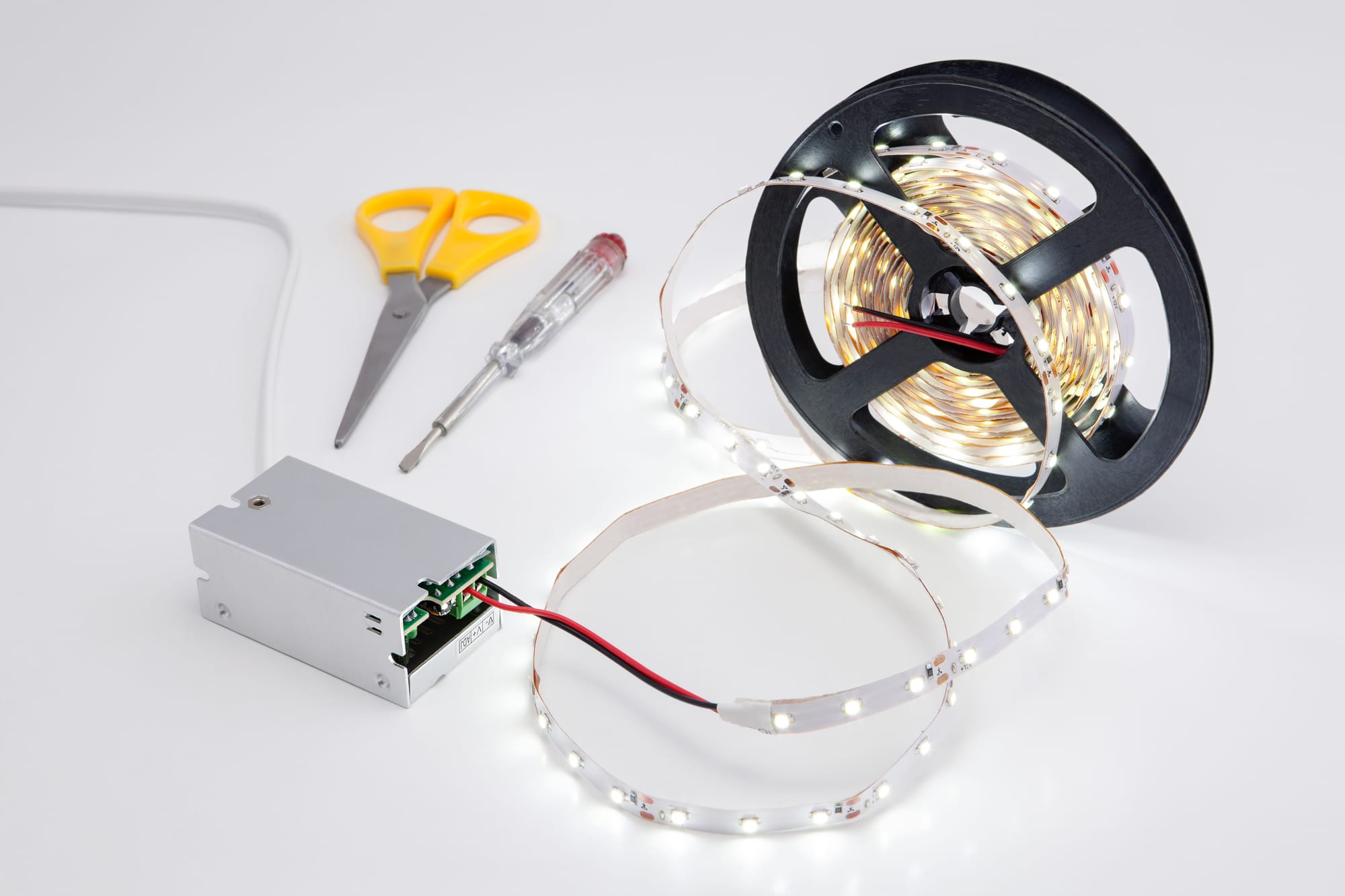

How to Attach an LED Strip to a Power Supply?

LED light strip is one of the top-selling items since it's easy to install, consumes less power, and you can place it anywhere you want. Utilize them as kitchen lighting for the home, living room mood lighting, or home renovation accent lighting. The secret is: too easy to place an LED strip into a socket, yet safe and cost-effective enough that you don't require professionals.

We will talk about the power supply and power strip, and all the other details of how to power an LED strip with a power supply, from the connection type, power ratings, LED strip type, to safety issues.

First, even before they come into your hands, you should already know something about the various types of LED strips and what kind of power requirement is being imposed on them.

Types of LED Strips

1. 12V and 24V LED Strips

The voltage capacity for LED strips is 12V or 24V. This is because the incorrect voltage could translate to fewer hours of work for your LED strip.

2. Single Colour vs RGB LED Strips

Single-colour LED strip only has simple positive and negative connections, and RGB (Red, Green, Blue) or RGBW strips have extra colour channel connections. RGB strips may even have a need for a controller to shift colour.

Working out Power Requirements

The power of an LED strip is watts per metre. For instance, a 10W per metre 24V LED strip.

To work out the total amount of power required:

1. Measure the length of the strip in meters.
2. Multiply the wattage per meter by the total meters.
3. Ensure your power supply can handle at least this total wattage.

Example: A 5-meter 24V LED strip rated at 10W/meter needs:
5 × 10w = 50W

So you’d need a power supply rated slightly above 50W, ideally around 60W, to ensure reliability.

Choosing the Right Power Supply

The driver or adapter, and the supply itself, is indeed the piece of equipment that converts the AC mains voltage (the plug) into the DC voltage that your LED strip needs.

Key Features to Pay Attention to

1. Voltage Compatibility - Choose the voltage for your LED strip. A 12V strip requires a 12V supply.
2. Wattage Capacity - The power source must be strong enough to support higher than the combined wattage of your strip. It must be 10-30% more.
3. Power Supply Type –
   There are two varieties of LED power supplies:

• Plug-in adapters: Simple to install on small projects, usually 12V/24V.
• Hardwired drivers - For large projects or complicated installations, when the LED strip has to be hardwired and fixed in a single location.

Step-by-Step Installation Process to Install an LED Strip onto a Power Supply

The following is the easy step-by-step installation process to safely install your LED strip.

Step 1: Prepare Your Working Space

1. Switch off the main power in case of any unexpected accident.
2. Ready tools: wire cutters, screwdriver, electric tape, and, if necessary, soldering iron.
3. Ensure your LED strip is the right length. A few are pre-scored cutting points without destroying the rest of the strip.

Step 2: Mark Connections

1. Most LED strips will also need marking a positive (+) and negative (-) terminal on the strip.
2. On RGB or RGBW strips, there will be several terminals on one particular channel.

Step 3: Wire Connections

Option A: With Connector Clips

1. They are plastic clips that hold the end of your LED strip.
2. Put power supply wires into the clip with proper polarity.
3. Snap the clip to lock in the connection.

Option B: Soldering Wires

1. Strip insulation from the end of the wires about 5mm.
2. Solder the positive wire to the positive pad and the negative wire to the negative pad of the LED strip.
3. Close up the solder joint with electrical tape or heat shrink tubing.

Option C: Pre-wired LED Strips

Pre-wired LED strips can also be used. In this case, strip wires are attached to the power supply in a manner such that they don't permit reverse polarity.

Step 4: Double Check Connections

1. Check all the connections to be identified on the power supply and even on the strip.
2. LEDs are destroyed by incorrect wiring.

Step 5: Turn It On

1. Double check everything is nicely wired and plugged in, then switch on the supply.
2. Test the strip to check that the LEDs are lighting evenly.

Long LED Strip Installation Tips

Where the run lengths actually do turn out to be quite long, you end up with a voltage drop, i.e., the LEDs you are further away from are lighting less. To prevent this:

1. During long runs, utilize the strip that is capable of more voltage (24V compared to 12V).
2. Utilize the availability of multiple power inputs on the strip.
3. Employ heavier gauge wire for reduced resistance and voltage drop.
4. Power the strip from both ends.

Safety Precautions

1. Low voltage during installation, yet dangerous when installed incorrectly.
2. Never exceed its watt rating – do not overload the power supply.
3. Correct Insulation – Insulate exposed wires and solder terminals to avoid short circuits.
4. Waterproofing – Use waterproofed LED strips and connectors when installing outside or in moist areas.
5. Ventilation – The power source needs to be fixed in a well-ventilated area to avoid overheating.

Mounting Your LED Strip

After wiring, mount the strip. Most LED strips come with adhesive tape. For an extra secure grip:

1. Dust-free and grease-free clean surface.
2. Length of pressed-down strip.
3. Channels or clips can be applied to provide support on especially shaped mounted surfaces.

Troubleshooting Common Issues

Some of the following issues will even occur with proper installation:

1. LED Strip Won't Turn On
2. Check polarity.
3. Power source turned on and is in working condition.
4. Flickering LEDs
5. Low watt or loose wire might be the issue.
6. Tighten the wires and employ a high-watt power source.
7. Switch on the LEDs near the end
8. Voltage drop is a probable cause. Use power feeds or employ a strip of higher voltage.

Conclusion

Mounting an LED strip on a power supply is not rocket science. As long as you have some knowledge of how much voltage and wattage your LED strip will need, utilize the proper power supply, and plug it in where you're not going to hurt anyone or yourself, you can have a neat and organized setup.

Just keep in mind that all the frills and fun, such as easy mount, insulation, and polarity, are what you would want out of performance and durability mode. Flicking your strip after mounting it is not only lighting your room; it is announcing to the world the time and effort that went into mounting.

LED strips are a way to transform a room, highlight architectural features, or add personality to your space. Get it right the first time, and you’ll enjoy bright, efficient, and long-lasting LED lighting for years to come.
