All LED 1 Watt White IP65 Low Level Square Window (Cool White)

Available for delivery
Price
£39.41
Inc. VAT £47.29
RRP £56.63

Save a total of £17.22
Inc. VAT £47.29

Beam Angle
50 Degrees
Colour Temp
4000 K
Depth
22 mm
Dimming?
Dimmable
Downlight Cut Out
32 mm
Finish
White
Light Colour
Cool White (840/845)
Light Fitting Type
Marker Light
Lumens
90 lm
Manufacturer
All LED
Technology
LED
Type
Light Fitting
Wattage
1 W
Width
37 mm

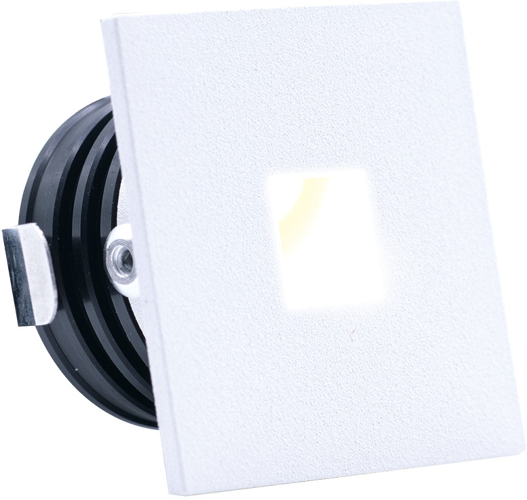

All LED 1 Watt White IP65 Low Level Square Window (Cool White) from All LED
Model: ALSQ032OP/WH/40
Introducing the stylish and functional Sloane Square 1W LED Low Level Light in Polar White (4000K). PART NUMBER - ALSQ032OP/WH/40 | Quick Find Number - 48263. Designed for durability with an IP65 rating, it offers excellent protection against dust and water, making it ideal for both indoor and outdoor use. Featuring an anti-glare LED design, it ensures comfortable, visually appealing illumination perfect for staircases, plinths, and accent lighting.
The clear glass construction produces a sharp-edged beam, adding a bold architectural touch to any space. Its ultra-slim profile integrates seamlessly into various settings, enhancing aesthetics while providing reliable lighting. The light operates on a 350mA constant current for series wiring setups and can be dimmed when paired with a compatible dimmable LED driver, offering customizable lighting options.
Complete with a 1-metre pre-wired cable, the Sloane Square light is easy to install, making it a versatile choice for modern homes and commercial spaces. Whether used to highlight architectural details or for practical low-level lighting, this light delivers exceptional performance, style, and durability. Perfect for creating a refined and contemporary lighting solution.
Please note this product must be wired in series.
Product Features:
- IP65 Rating
- 1W LED
- 1 Metre Pre-Wired Cable
- Low Glare Low Level Lighting
- Clear Glass For Optimum Light Distribution
- Ideal For Wall & Stair Lighting
- Ultra Slim Profile
- 350mA Constant Current (Series Wiring)
- Dimmable With Dimmable LED Driver
Driver Compatibility
Code | Output | Dim |
ADRCC350/1-11 | 1-11 x 1W LED | No |
ADRCC350TD/1-4 | 1-4 x 1W LED | Yes |
ADRCC350NANOTD/2-4 | 2-4 x 1W LED | Yes |
ADRCC350TD/4-9 | 4-9 x 1W LED | Yes |
ADRCC350TD/9-18 | 9-18 x 1W LED | Yes |
ADRCC350TD/12-25 | 12-25 x 1W LED | Yes |
ADRCC12D/100-440MA | 3-14 x 1W LED | Yes |
ADRCC30D/300-900MA | 3-23 x 1W LED | Yes |
Technical Specifications
Light Fitting Type | Marker Light |
---|---|
Technology | LED |
Wattage | 1 W |
Manufacturer | All LED |
Light Colour | Cool White (840/845) |
Dimming? | Dimmable |
Beam Angle | 50 Degrees |
Lumens | 90 lm |
Colour Temp | 4000 K |
Depth | 22 mm |
Type | Light Fitting |
Finish | White |
Warranty | 3 Years |
Width | 37 mm |
Downlight Cut Out | 32 mm |
Manufacturers Part Number | ALSQ032OP/WH/40 |
Alternative Stock Identifier Part Codes
Components
For All LED 1 Watt White IP65 Low Level Square Window (Cool White)
Downloads
![]() | Datasheet |
![]() | Instruction Manual |
