ALL LED 30mm Dia. Mini 1 Watt IP44 LED Marker Light (Blue - White Finish)
Available for delivery
Price
£20.13
Inc. VAT
£24.16
RRP
£24.11
Save a total of £3.98
Inc. VAT £24.16
Beam Angle
50 Degrees
Cable Length
1 M
Depth
25 mm
Diameter
30 mm
Dimming?
Dimmable
Downlight Cut Out
20 mm
Downlight Fixing Type
Integrated LED
Equivalent Wattage
9 W
Finish
White
Fire Rated?
No
Light Colour
Blue
Light Fitting Type
Marker Light
Manufacturer
All LED
Technology
LED
Type
Light Fitting
Voltage
350ma Constant Current Volt
Wattage
1 W
Product Overview

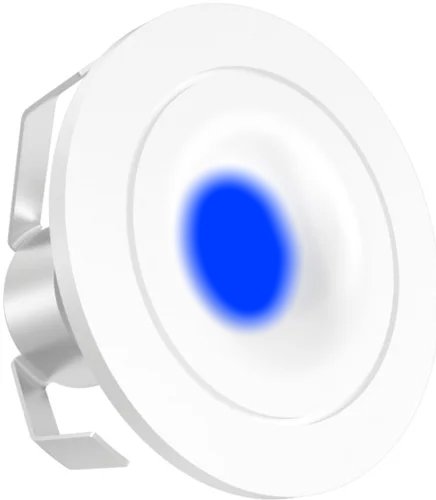

ALL LED 30mm Dia. Mini 1 Watt IP44 LED Marker Light (Blue - White Finish) from All LED
Model: AMKR020WH/BLU
Perfect for effect lighting a super-slim 30mm diameter Mini Marker Light from All LED emitting a beautiful Blue coloured light. This light operates on a constant current, lasts an energy efficient 50,000 hours and offers a 50 degree beam angle. Requiring just a 20mm cutout this IP44 rated light is perfect for use in a host of residential and commercial applications including ceiling mounted bathroom lighting. A discreet White finish increases aesthetic appeal alongside dimming capability. It consists of an aluminium front (bezel) and a polycarbonate rear section.The fitting comes supplied with a 1m long cable.
This product requires an ALL LED branded driver, failure to do so will invalidate the warranty. ALL LED marker lights must be wired in series only.
Product Features:
- IP44 Rating
- 1W LED
- Anti-Glare Design
- 2 Metre Pre-Wired Cable
- Clear Glass Provides A Sharp Edged Beam For Strong Architectural Effect
- Interchangeable Bezels Available
- Ultra Slim Profile
- Dimmable With A Dimmable LED Driver
- 350mA Constant Current (Series Wiring)
If required 20m of 0.75mm cable can be run from the power source to this light.
Driver Compatability
| Code | Output | Dim |
| ADRCC350/1-11 | 1-11 x 1W LED | No |
| ADRCC350TD/1-4 | 1-4 x 1W LED | Yes |
| ADRCC350NANOTD/2-4 | 2-4 x 1W LED | Yes |
| ADRCC350TD/4-9 | 4-9 x 1W LED | Yes |
| ADRCC350TD/9-18 | 9-18 x 1W LED | Yes |
| ADRCC350TD/12-25 | 12-25 x 1W LED | Yes |
| ADRCC12D/100-440MA | 3-14 x 1W LED | Yes |
| ADRCC30D/300-900MA | 3-23 x 1W LED | Yes |
Potential Energy Savings
Your saving would be approximately £112.00
Technical Specifications
| Light Fitting Type | Marker Light |
|---|---|
| Technology | LED |
| Wattage | 1 W |
| Manufacturer | All LED |
| Light Colour | Blue |
| Dimming? | Dimmable |
| Equivalent Wattage | 9 W |
| Beam Angle | 50 Degrees |
| Depth | 25 mm |
| Diameter | 30 mm |
| Type | Light Fitting |
| Finish | White |
| Cable Length | 1 M |
| Manufacturers Average Lamp Life | 50000 hrs |
| Voltage | 350ma Constant Current Volt |
| IP Rating | IP44 |
| Fire Rated? | No |
| Downlight Fixing Type | Integrated LED |
| Warranty | 5 Years |
| Downlight Cut Out | 20 mm |
| Energy Efficiency Rating | A |
Associated Product Barcodes
| 5060393740308 |
| 5060393743811 |
Alternative Stock Identifier Part Codes
| AMKR020WH/BL |
