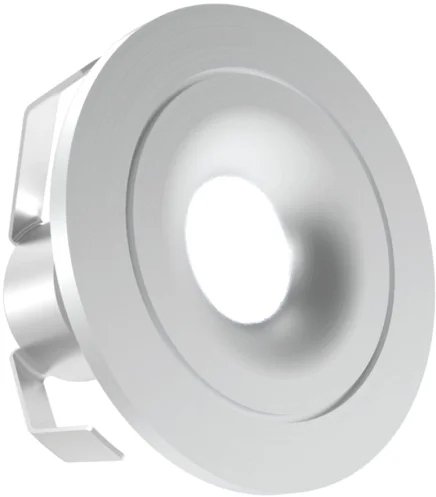

ALL LED 30mm Dia. Mini 1 Watt IP44 LED Marker Light (Cool White - Aluminium Finish)
Available for delivery
Price
£19.27
Inc. VAT
£23.12
RRP
£24.11
Save a total of £4.84
Inc. VAT £23.12
Beam Angle
50 Degrees
Cable Length
1 M
Colour Temp
4000 K
Depth
25 mm
Diameter
30 mm
Dimming?
Dimmable
Downlight Cut Out
20 mm
Downlight Fixing Type
Integrated LED
Equivalent Wattage
9 W
Finish
Aluminium
Fire Rated?
No
Light Colour
Cool White (840/845)
Light Fitting Type
Marker Light
Lumens
70 lm
Manufacturer
All LED
Technology
LED
Type
Light Fitting
Voltage
350ma Constant Current Volt
Wattage
1 W
Product Overview
ALL LED 30mm Dia. Mini 1 Watt IP44 LED Marker Light (Cool White - Aluminium Finish) from All LED
Model: AMKR020AL/40
Just 30mm in diameter an attractively crafted, super-slim Mini Marker Light ideal for effect lighting from All LED, outputting 70 lumens of light in a crisp Cool White colour. This IP44 rated light is perfect for use in a host of residential and commercial applications, from stair marker lighting to ceiling mounted bathroom lighting. A contemporary Aluminium finish increases aesthetic appeal alongside dimming capability. This light operates on a constant current, lasts a long 50,000 hours and offers a 50 degree beam angle. The fitting comes supplied with a 1m long cable. It consists of an aluminium front (bezel) and a polycarbonate rear section.
This product requires an ALL LED branded driver, failure to do so will invalidate the warranty. ALL LED marker lights must be wired in series only.
Product Features:
- IP44 Rating
- 1W LED
- Anti-Glare Design
- 2 Metre Pre-Wired Cable
- Clear Glass Provides A Sharp Edged Beam For Strong Architectural Effect
- Interchangeable Bezels Available
- Ultra Slim Profile
- Dimmable With A Dimmable LED Driver
- 350mA Constant Current (Series Wiring)
If required 20m of 0.75mm cable can be run from the power source to this light.
Driver Compatability
| Code | Output | Dim |
| ADRCC350/1-11 | 1-11 x 1W LED | No |
| ADRCC350TD/1-4 | 1-4 x 1W LED | Yes |
| ADRCC350NANOTD/2-4 | 2-4 x 1W LED | Yes |
| ADRCC350TD/4-9 | 4-9 x 1W LED | Yes |
| ADRCC350TD/9-18 | 9-18 x 1W LED | Yes |
| ADRCC350TD/12-25 | 12-25 x 1W LED | Yes |
| ADRCC12D/100-440MA | 3-14 x 1W LED | Yes |
| ADRCC30D/300-900MA | 3-23 x 1W LED | Yes |
Potential Energy Savings
Your saving would be approximately £112.00
Technical Specifications
| Light Fitting Type | Marker Light |
|---|---|
| Technology | LED |
| Wattage | 1 W |
| Manufacturer | All LED |
| Light Colour | Cool White (840/845) |
| Dimming? | Dimmable |
| Equivalent Wattage | 9 W |
| Beam Angle | 50 Degrees |
| Lumens | 70 lm |
| Colour Temp | 4000 K |
| Depth | 25 mm |
| Diameter | 30 mm |
| Type | Light Fitting |
| Finish | Aluminium |
| Cable Length | 1 M |
| Manufacturers Average Lamp Life | 50000 hrs |
| Voltage | 350ma Constant Current Volt |
| IP Rating | IP44 |
| Fire Rated? | No |
| Downlight Fixing Type | Integrated LED |
| Warranty | 5 Years |
| Downlight Cut Out | 20 mm |
| Energy Efficiency Rating | A |
Associated Product Barcodes
| 5060393743309 |
Alternative Stock Identifier Part Codes
| AMKR020AL/40 |
