BAG Dimmable Single and Twin 15-57W Multi-Lamp Electrical Ballast

This is a High Frequency (Standard) ballast designed to run 42 W lamps which is part of our control gear range produced by BAG Electronics
This is a High Frequency (Standard) ballast designed to run 42 W lamps which is part of our control gear range produced by BAG Electronics
Voltage 240
QuickFind: 36114
BAG Dimmable Single and Twin 15-57W Multi-Lamp Electrical Ballast
This item was discontinued on 3rd December, 2019 and is no longer available.

Product Summary

Ballast Type
High Frequency (Standard)
Dimming?
Dimmable
Height
30 mm
Length
103 mm
Manufacturer
BAG Electronics
Type
Control Gear
Voltage
240 Volt
Width
67 mm

BAG Dimmable Single and Twin 15-57W Multi-Lamp Electrical Ballast

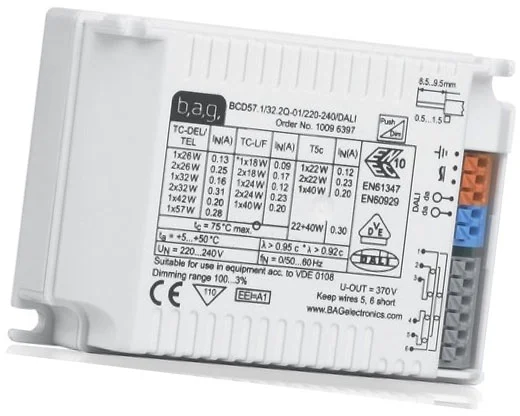

from BAG Electronics (Model: BCD57.1/32.2Q-01/220-240/DALI)

A 24-40 watt single T5 and a single 24-39W T5, a single 15-38 watt T8, a single 18-57 watt CFL, a twin 22-40 watt T5, twin 24 watt T5, a twin 15-36 watt T8 and lastly a twin 18-32 watt CFL. This ballast will run a single T5 tube rated at 24-40 watts, a single T5 tube rated at 24-39 watts, a single T8 tube rated at 15-38 watts, a single CFL tube rated at 18-57 watts, a twin T5 tube rated 24 watts, a twin T8 tube rated at 15-36 watts and lastly a twin CFL tube rated at 18-32 watts.

BAG Part Number:BAG10096397
Wattage Tube Runs: 22-40, 24-39, 15-38, 18-57, 22-40, 24, 15-36, 18-32 Watts.
Dimensions: 103mm x 30mm x 67mm

Technical Specifications

for BAG Dimmable Single and Twin 15-57W Multi-Lamp Electrical Ballast

Actual Wattage 34 W
Actual Wattage 32 W
Actual Wattage 42 W
Actual Wattage 26 W
Actual Wattage 28 W
Actual Wattage 38 W
Actual Wattage 36 W
BAG Part Number BAG10096397
Ballast Type High Frequency (Standard)
Dimming? Dimmable
Height 30 mm
Lamp Type PLC (4 Pin)
Lamp Type T8
Lamp Type T5
Lamp Type PLT (4 Pin)
Length 103 mm
Manufacturer BAG Electronics
No. Of Lamps Twin (2x)
No. Of Lamps Single (1x)
Type Control Gear
Voltage 240 Volt
Width 67 mm
