BAG Non-Dimmable Single 18-26W Multi-Lamp Electrical Ballast
Quick Find: 36104
Product Discontinued
This item was discontinued on 9th November, 2022
Recommended alternative:
Tridonic PC Square Basic High Frequency Ballast 1 x 26w
Check out our full range:
Tridonic Basic High Frequency Ballasts
Accessory Type
Ballast
Compatible Lamp Type
PLT (4 Pin)
Control Gear Technology
Fluorescent
Control Gear Type
High Frequency
Dimming?
Non-Dimmable
Height
20 mm
Length
80 mm
Manufacturer
BAG Electronics
No. Of Lamps
Single (1x)
Type
Control Gear
Voltage
220-240 Volt
Width
42 mm

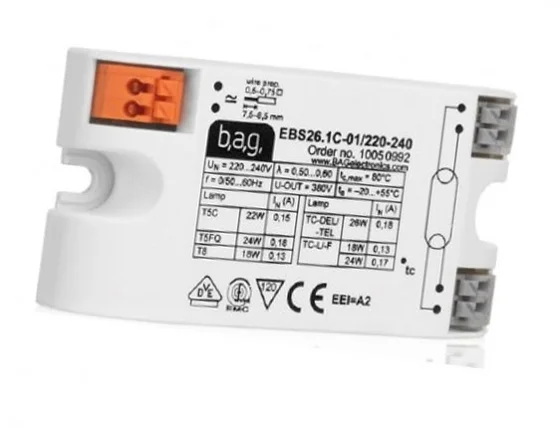

BAG Non-Dimmable Single 18-26W Multi-Lamp Electrical Ballast from BAG Electronics
Model: EBS26.1C-01/220-240
A 22 watt single T5, a single 24 watt T5, a single 18 watt T8 and a single 18-26 watt CFL ballast from BAG Electronics. This ballast will run a single T5 tube rated at 22 watts, a single T5 tube rated at 24 watts, a single T5 tube rated at 18 watts and a single CFL tube rated at 18-26 watts.
BAG Part Number:BAG10050992
Wattage Tube Runs: 22, 24, 18, 18-26 Watts.
Dimensions: 80mm x 20mm x 42mm
BAG Part Number:BAG10050992
Wattage Tube Runs: 22, 24, 18, 18-26 Watts.
Dimensions: 80mm x 20mm x 42mm
Technical Specifications
| Control Gear Type | High Frequency |
|---|---|
| Accessory Type | Ballast |
| Wattage | 22 W |
| Wattage | 18 W |
| Wattage | 24 W |
| Wattage | 26 W |
| Manufacturer | BAG Electronics |
| Dimming? | Non-Dimmable |
| No. Of Lamps | Single (1x) |
| Height | 20 mm |
| Length | 80 mm |
| Type | Control Gear |
| Voltage | 220-240 Volt |
| Width | 42 mm |
| Compatible Lamp Type | PLT (4 Pin) |
| Control Gear Technology | Fluorescent |
| Manufacturers Part Number | BAG10050992 |
Alternative Stock Identifier Part Codes
| BAG 10050992 |
| BAG10095045 |
| Philips HFM124 Square |
