Can you get LED versions of Halogen Capsules?

Lots of people just want the brightness of halogen capsules sans heat, energy bills, and constant replacements. Which is why the question persists regarding an LED version of the halogen capsule. The short answer is, yes, you can get the LED alternatives; however, the longer answer is where things start to get interesting, especially if you are contemplating an upgrade for your home fittings.

Now, let's break it down in simple, real terms, so that you will know what works and what doesn't, and what to watch out for before placing an order.

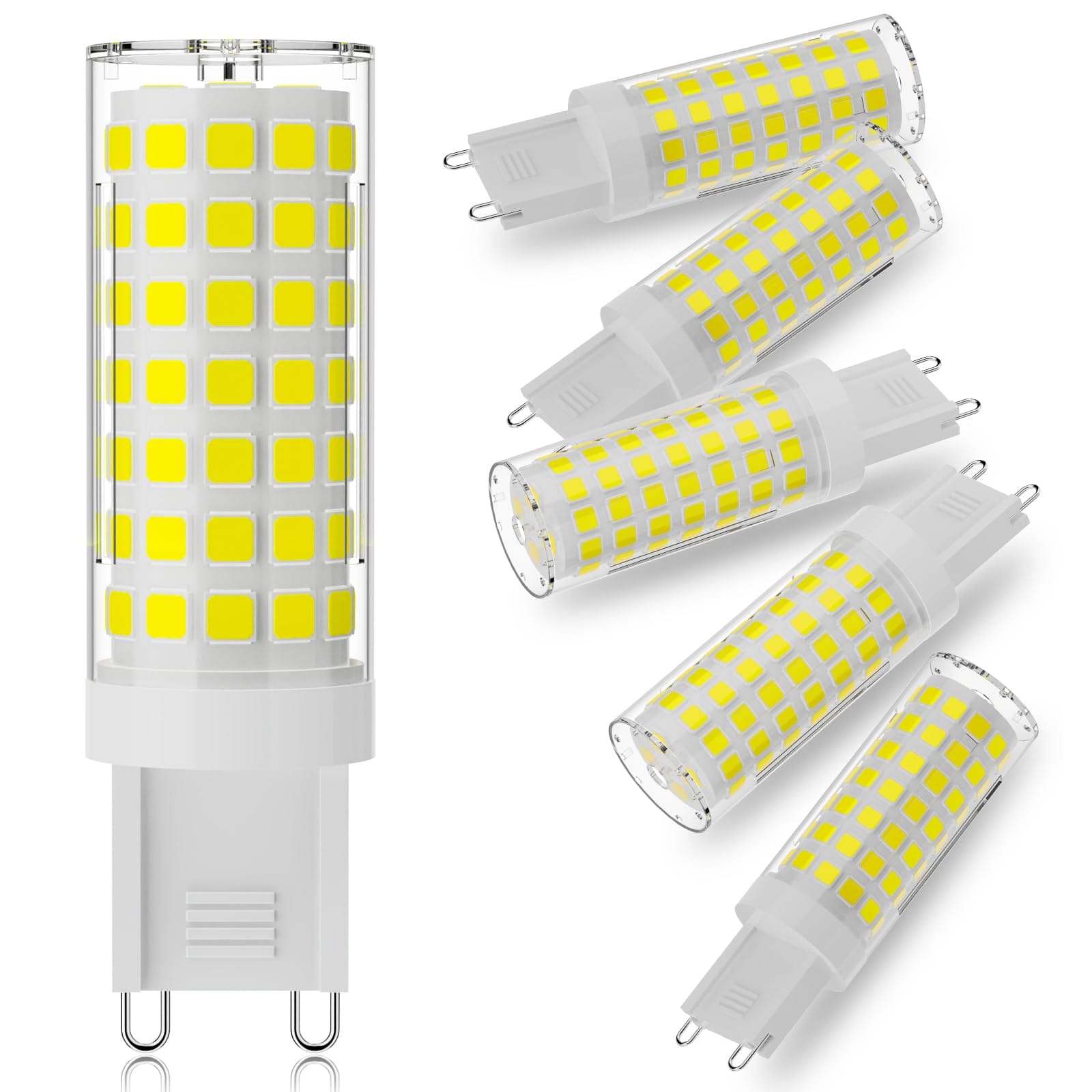

These days, LED capsule bulbs are still manufactured in those two most common formats: G4 and G9. They're a direct replacement for the classic halogen capsules almost everyone has inside decorative lights, under-cabinet lighting, undershelf fixtures, pendant lights, or cooker hoods. The whole point of these LED versions is to give you the same small footprint and similar brightness while using a tiny fraction of the power.

If you'd like to see the standard types of halogen capsules side by side for comparison, please see the range here: https://www.bltdirect.com/halogen-capsule-light-bulbs

Can you replace halogen capsule bulbs with LED?

Yes, you can replace them, but there are a few things that you need to match correctly.

Here's what really matters:

1. Base type: Get the LED that fits. If it's a G9 bulb right now, find a G9 LED. If it's G4, get a G4 LED. The pins and spacing need to be the same.
2. Voltage: This is where many people get it wrong. Halogen capsules, especially G4s, are often 12V, while G9s are usually 230V (mains). LED replacements must match the voltage exactly. A 12V LED capsule will not survive being plugged into a 230V fitting.
3. Transformer: If your halogen capsule ran on 12V, somewhere in that light fitting is a transformer. Some of these older transformers do not play nicely with LED bulbs, and that can be a cause of flickering, buzzing, or the LED refusing to turn on. When you are moving from using halogens to LEDs on a 12V system, be prepared to change out your transformer for one compatible with LEDs.
4. Size differences: Often, LED versions are a little larger due to internal electronics. Be sure there is adequate clearance within your fitting.

Replace these correctly, and the upgrade is a simple swap-out: pull the old capsule out, push the new LED in, and you're done.

Can I upgrade halogen to LED?

You can, and honestly, it's worth it. Once you upgrade, you will immediately notice the following three big changes:

1. Lower running costs: LED capsules use about 80–90% less electricity. For people who have many of them on, sometimes for hours a day, the savings add up pretty fast.
2. Less heat: Halogen capsules get extremely hot. LEDs stay cool, and that is much safer in view of enclosed areas, cabinets, and fittings close to wood.
3. Longer life: Halogen capsules often only last a few hundred hours; a good LED capsule will last thousands of hours. No more replacing bulbs every few months.

If the fixture accepts both the shape and voltage of the replacement LED, an upgrade is straightforward. For many newer fixtures, this really is a plug-and-play job.

Can you put an LED light in a halogen fitting?

Many times, yes, but that would depend on the fitting and power setup.

Here's what you need to check:

1. Does the fitting itself allow LEDs?

Most fittings do. In other words, the LED capsules are drop-in replacements. If the fixture has a dimmer, however, things get a bit more specific.

Some LEDs are dimmable and others aren't. And some dimmers only work with halogen bulbs. If you want dimming, pick an LED capsule labeled dimmable and make sure the dimmer switch is LED-compatible.

2. Is the transformer LED-friendly?

This mainly applies to 12V G4 capsules. The older halogen transformers were designed for higher loads and sometimes have problems with the low-watt LED bulbs.

These are incompatibility signs from the transformer: flickering, flashing, a faint buzzing sound, and an LED that turns off after a few seconds. It would be fixed using an LED driver.

3. Is there enough space in the fitting?

A halogen capsule is small. LEDs could be wider or even longer. Always check the product dimensions.

Why are LED upgrades becoming the new normal?

When the halogen capsules first appeared, they came into favor because they could provide crisper and brighter light than the older LEDs were capable of. That isn't true anymore. Contemporary LED capsules can be made to emit warm, soft, bright, or cool light, depending on one's preference.

You will save money by getting lower bills, you won't risk heat; their lifespan is longer, they require less maintenance, and color temperature control is better. The quality of light has improved enough that you won't at all miss your old halogens.

A Practical Example

Now, take as an example a decorative pendant that houses five G9 halogen capsules. The wattage usage for each of the halogen capsules is approximately 40W. That is a total of 200W.

If you change these out for 4W LED capsules, you drop down to 20W total.

Brightness: almost the same.

Bills: much cheaper.

Heat: almost none.

Lifespan: years instead of months. The largest benefit with the least effort comes from upgrading the halogen capsules to LED.

Final Thought

Yes, you can definitely get LED versions of the halogen capsules, and it is not complicated to upgrade once you match the right base, voltage, and size. Most of the fittings accept LED capsules without modifications; even in those few cases that may need a new transformer or dimmer, making the upgrade is well worth the long-term savings and ease of use. For those who want to see the halogen versions you may be replacing, here's the collection again: https://www.bltdirect.com/halogen-capsule-light-bulbs
