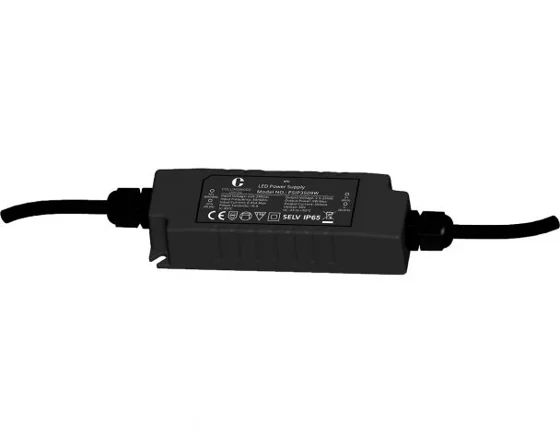

Collingwood IP65 Non-Dimmable 1-9W 2.5-25V LED Driver (350mA)
Quick Find: 65608
Product Discontinued
This item was discontinued on 26th October, 2023
Alternatively check out our full range of simular products below:
LED Drivers
Control Gear Technology
LED
Control Gear Type
LED Driver
Current Output
350mA
Dimming?
Non-Dimmable
Height
37 mm
Input Voltage
220-240 V
Length
149 mm
Manufacturer
Collingwood
Output Voltage (LED Driver)
2.5 V - 25 V
Type
Control Gear
Wattage
9 W
Width
24 mm
Collingwood IP65 Non-Dimmable 1-9W 2.5-25V LED Driver (350mA) from Collingwood
Model: PSIP3509W
Collingwood presents the PSIP range of LED drivers designed specifically for their landscape lighting range. This model of PSIP driver can operate between 1W to 9W LED lights and is IP65 rated making it suitable for outdoor use (up to 350mA output). It is a non dimmable model with a slim, discreet design to make it easy to install and hide away.
Technical Specifications
| Control Gear Type | LED Driver |
|---|---|
| Wattage | 9 W |
| Manufacturer | Collingwood |
| Dimming? | Non-Dimmable |
| Height | 37 mm |
| Input Voltage | 220-240 V |
| Length | 149 mm |
| Type | Control Gear |
| IP Rating | IP65 |
| Current Output | 350mA |
| Warranty | 5 Years |
| Width | 24 mm |
| Output Voltage (LED Driver) | 2.5 V - 25 V |
| Control Gear Technology | LED |
Associated Product Barcodes
| 5055351547983 |
Alternative Stock Identifier Part Codes
Components
For Collingwood IP65 Non-Dimmable 1-9W 2.5-25V LED Driver (350mA)
Downloads
 | Datasheet |
