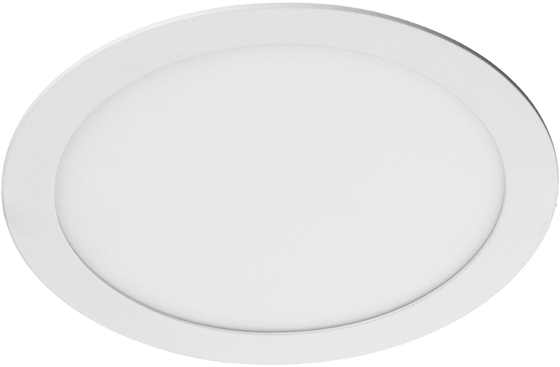

Red Arrow 20W IP44 Round Mini LED Panel Daylight

This is a Product image
Quick Find: 65996
Part No: ORB20-60
FREE Shipping
On orders over £75.00
IN Stock
Available for delivery

Price
£16.46

Inc. VAT
£19.75

RRP
£34.86

On Sale
53% Off
Save a total of £18.40
£16.46
Inc. VAT £19.75
On Sale
Saving 53% (£18.40) on RRP: £34.86
Quick Find: 65996
Part No: ORB20-60

Beam Angle
120 Degrees

Colour Temp
6000 K

Depth
35 mm

Diameter
240 mm

Dimming?
Non-Dimmable

Downlight Cut Out (mm)
215 mm

Equivalent Wattage
70 W

Finish
White

IP Rating
IP44

Light Colour
Daylight (860/865)

Light Fitting Type
LED Panel

Lumens
1600 lm

Manufacturer
Red Arrow

Material
Aluminium

Technology
LED

Type
Light Fitting

Voltage
220-240 Volt

Wattage
20 W

Red Arrow 20W IP44 Round Mini LED Panel Daylight from Red Arrow

Model: ORB20-60

A white 20 watt rated mini round LED panel fitting by Red Arrow that will emit a replicated daylight (6000K) coloured light over an approximate 30,000 hour lifespan. The white panel light is IP44 rated ensuring a higher degree of protection against the elements and will run on mains voltage. These Panels are ideal lighting solutions for educational environments and can also be used for retail and domestic purposes. Panel Dimensions: Diameter: 240mm x Depth: 13mm. Cut Out Size: 215mm. Can be dimmer compatible with addition of an ORB20D-DVR dimmable driver and can be converted to an emergency luminaire with the additional purchase of EMLEDKIT3.

Technical Specifications

Light Fitting Type LED Panel
Technology LED
Wattage 20 W
Manufacturer Red Arrow
Light Colour Daylight (860/865)
Dimming? Non-Dimmable
Equivalent Wattage 70 W
Beam Angle 120 Degrees
Lumens 1600 lm
Colour Temp 6000 K
Depth 35 mm
Diameter 240 mm
Type Light Fitting
Finish White
Manufacturers Average Lamp Life 30000 hrs
Voltage 220-240 Volt
Material Aluminium
IP Rating IP44
Operating Temperature -10°C to +50°C
Warranty 3 Years
Downlight Cut Out (mm) 215 mm
Energy Efficiency Rating A+

Associated Product Barcodes

5055807622431

Alternative Stock Identifier Part Codes

ORB20-60
