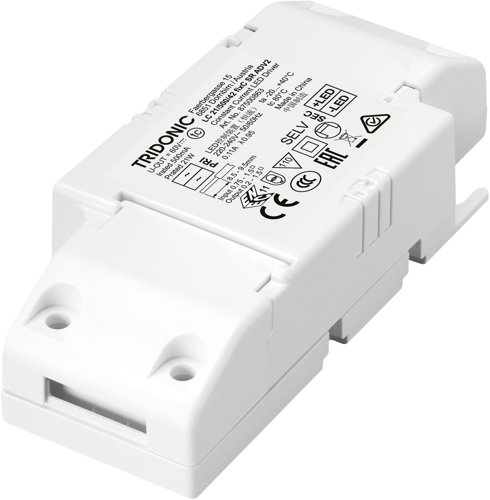

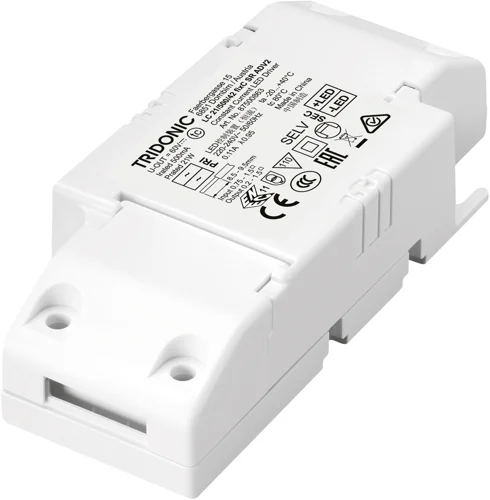

Tridonic ADVANCED Series 21W LC Compact Fixed Output LED Driver 500mA fixC SR ADV2

Tridonic ADVANCED Series 21W LC Compact Fixed Output LED Driver 500mA fixC SR ADV2
Tridonic ADVANCED Series 21W LC Compact Fixed Output LED Driver 500mA fixC SR ADV2
IP Rating IP20
RRP
£14.16
Price
£9.05
Inc. VAT
£10.86
36% Off
Save a total of £5.11
QuickFind: 54165
Part No: 87500863
IN Stock

Available for delivery

Tridonic ADVANCED Series 21W LC Compact Fixed Output LED Driver 500mA fixC SR ADV2
Price
£9.05
Inc. VAT £10.86
Saving 36% (5.11) on RRP: £14.16
QuickFind: 54165
Part No: 87500863

Product Summary

Actual Wattage
21 W
Ballast Type
LED Driver
Current Output
500mA
Depth
22.5 mm
Dimming?
Non-Dimmable
Finish
White
IP Rating
IP20
Length
100 mm
Manufacturer
Tridonic
Material
Polycarbonate
Width
42.8 mm

Tridonic ADVANCED Series 21W LC Compact Fixed Output LED Driver 500mA fixC SR ADV2

from Tridonic (Model: 87500863)
This independent LED driver from the Tridonic ADVANCED series has been designed with an extra flat housing for ease of installation in constrained conditions, such as small ceiling cut outs or low ceiling voids. It is made from a white polycarbonate with 2 seperate strain relief parts for input and output cables and provides a 500mA output current. This driver provides overload, short-circuit and no-load protection and is typically used for spot light and downlight applications in retail and hospitality.

Technical Specifications

for Tridonic ADVANCED Series 21W LC Compact Fixed Output LED Driver 500mA fixC SR ADV2

AC Voltage Range 198-264V
Actual Wattage 21 W
Ballast Type LED Driver
Current Output 500mA
Depth 22.5 mm
Dimming? Non-Dimmable
Efficiency at Full Load 89%
Finish White
Guarantee 5 Years
IP Rating IP20
Length 100 mm
Mains Frequency 50/60 Hz
Manufacturer Tridonic
Manufacturers Average Lamp Life 50000 hrs
Material Polycarbonate
Max. Input Power 25W
Maximum Output Voltage 60
Operating Mode (Constant Current / Constant Voltage) Constant Voltage
Rated Supply Voltage 220-240
Width 42.8 mm

Part Codes

of alternative stock identifiers

Products Related

to Tridonic ADVANCED Series 21W LC Compact Fixed Output LED Driver 500mA fixC SR ADV2

Product Components

of Tridonic ADVANCED Series 21W LC Compact Fixed Output LED Driver 500mA fixC SR ADV2

Product Downloads

available for this item
Datasheet Datasheet
