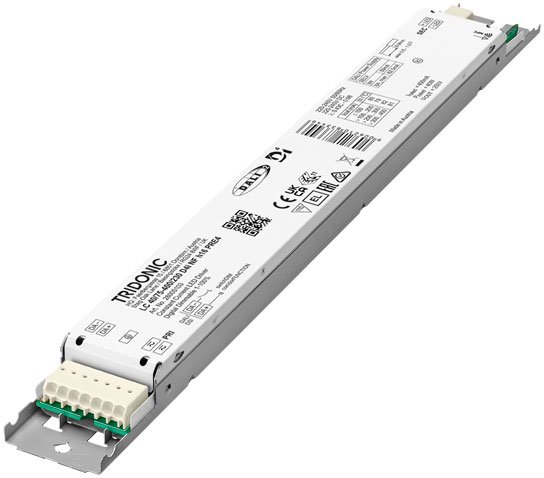

Tridonic Linear LED Driver LC 40W 75-400mA 230V D4i NF h16 PRE4
Quick Find: 77668
Part No: 28005103
In Stock
Available for delivery
Available for delivery
Price
£43.53
Inc. VAT £52.24
RRP £69.65
38% Off
Save a total of £26.12
Save a total of £26.12
£43.53
Inc. VAT £52.24
Inc. VAT £52.24
Saving 38% (£26.12) on RRP: £69.65
Quick Find: 77668
Part No: 28005103
Accessory Type
LED Driver
Control Gear Technology
LED
Current Output
75-400mA
Dimming?
Dimmable
Height
11 mm
Input Voltage
230 Volt
Length
280 mm
Manufacturer
Tridonic
Material
Metal
Type
Control Gear
Voltage
45 Volt
Wattage
40 W
Width
30 mm
Product Overview
Tridonic Linear LED Driver LC 40W 75-400mA 230V D4i NF h16 PRE4 from Tridonic
Model: 28005103
The Tridonic Driver LC 40W 75-400mA 230V D4i NF h16 PRE4 is a high-performance linear driver designed for optimal efficiency and reliability in various lighting applications. With an adjustable output current range of 75 to 400mA and a maximum power output of 40W, this driver ensures precise control and adaptability for diverse lighting requirements. The D4i certification guarantees compatibility with intelligent lighting systems, while the 230V input voltage supports standard electrical installations. Its robust design and advanced features make it an excellent choice for both commercial and residential lighting solutions.
Technical Specifications
| Accessory Type | LED Driver |
|---|---|
| Wattage | 40 W |
| Manufacturer | Tridonic |
| Dimming? | Dimmable |
| Height | 11 mm |
| Input Voltage | 230 Volt |
| Length | 280 mm |
| Type | Control Gear |
| Manufacturers Average Lamp Life | 100000 hrs |
| Voltage | 45 Volt |
| Material | Metal |
| IP Rating | IP20 |
| Current Output | 75-400mA |
| Warranty | 5 Years |
| Width | 30 mm |
| Rated Supply Voltage | 220-240 |
| Mains Frequency | 50/60 Hz |
| Efficiency at Full Load | 40W |
| Housing Style | Linear |
| Operating Mode (Constant Current / Constant Voltage) | Constant Current |
| Max Input Power | 44.2 W |
| Inrush Current | 24.1 A / 181 µs |
| Control Gear Technology | LED |
